Description

miniature gear motor N20 Metal Gear Micro Mini Motor DC 6V (200RPM) – QuartzComponentsThis N20 Micro DC geared motor is important components in a variety of applications that require high output torque and low output shaft speed, especially where space and available power are limited. From car parts, hospital beds to beauty products and door locks, making everyday living easier and more comfortable. The N20 Micro DC geared DC motor is lightweight, high torque, and low RPM motor. This motor is equipped with gearbox assembly so as to

This N20 Micro DC geared motor is important components in a variety of applications that require high output torque and low output shaft speed, especially where space and available power are limited. From car parts, hospital beds to beauty products and door locks, making everyday living easier and more comfortable.

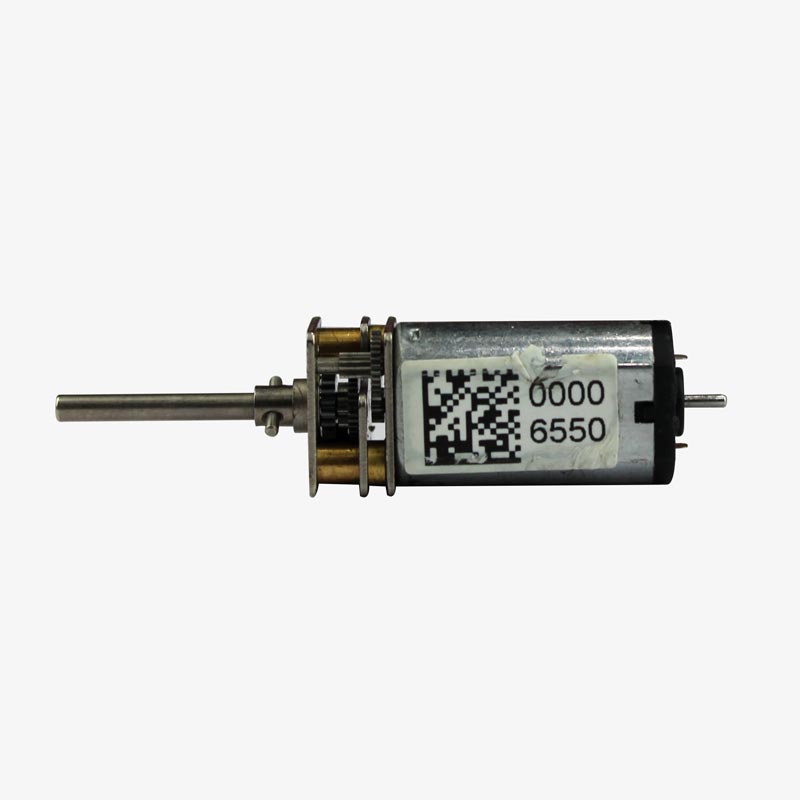

The N20 Micro DC geared DC motor is lightweight, high torque, and low RPM motor. This motor is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9.5 mm long and 2.95 mm in diameter. Because of its small size, the motor fits in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.

Note: Product image is for reference only. Actual appearance, shaft length, and connector type may vary depending on the batch, without affecting performance or specifications.


Specification:

  • Motor : N20 motor
  • Out Shaft diameter: 2.95mm (flat position: 2.45mm)
  • Shaft length: 9.5mm
  • Weight: 10g
  • Rated load : 200 g.cm
  • Working temperature: -10 degrees - 65 degrees
  • Motor mounting position: horizontal or vertical
  • Reduction ratio : 1:298
  • Rated voltage: DC 5V
  • Rated current : 36 MA
  • Rated load speed: 180RPM
  • Stall torque: 1 KG.cm
  • Operating voltage range : DC3V-6V


Package Include:

1 piece of  N20 Gear Motor.
